Particle to Grid¶

Overview¶

The particle-to-grid routines assign particle quantities onto regular Cartesian meshes using standard particle-mesh interpolation schemes.

Supported assignment methods:

NGP : Nearest Grid Point
CIC : Cloud-In-Cell
TSC : Triangular Shaped Cloud
PCS : Piecewise Cubic Spline

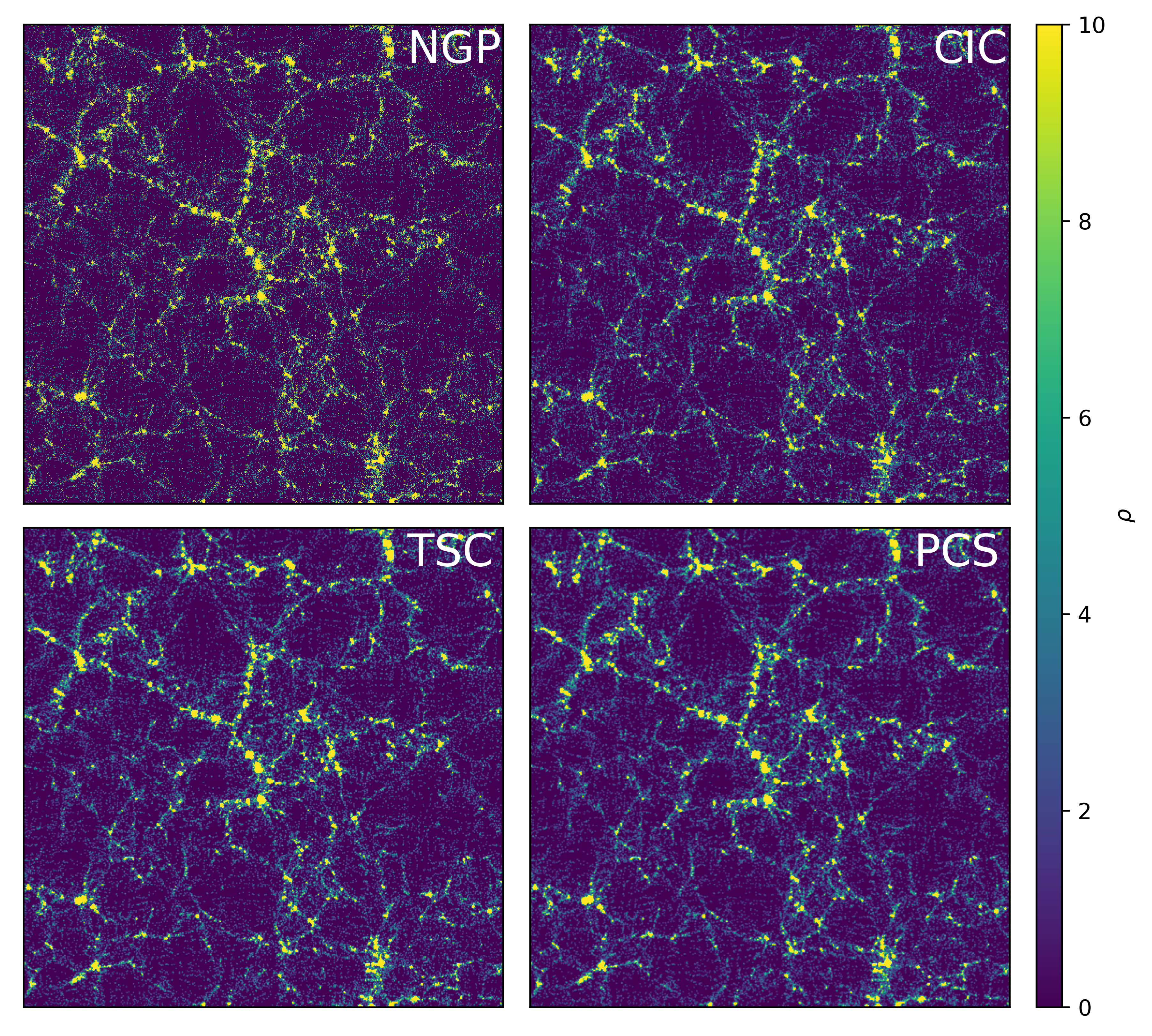

The density field of a cosmological simulation computed with particle-to-grid methods.

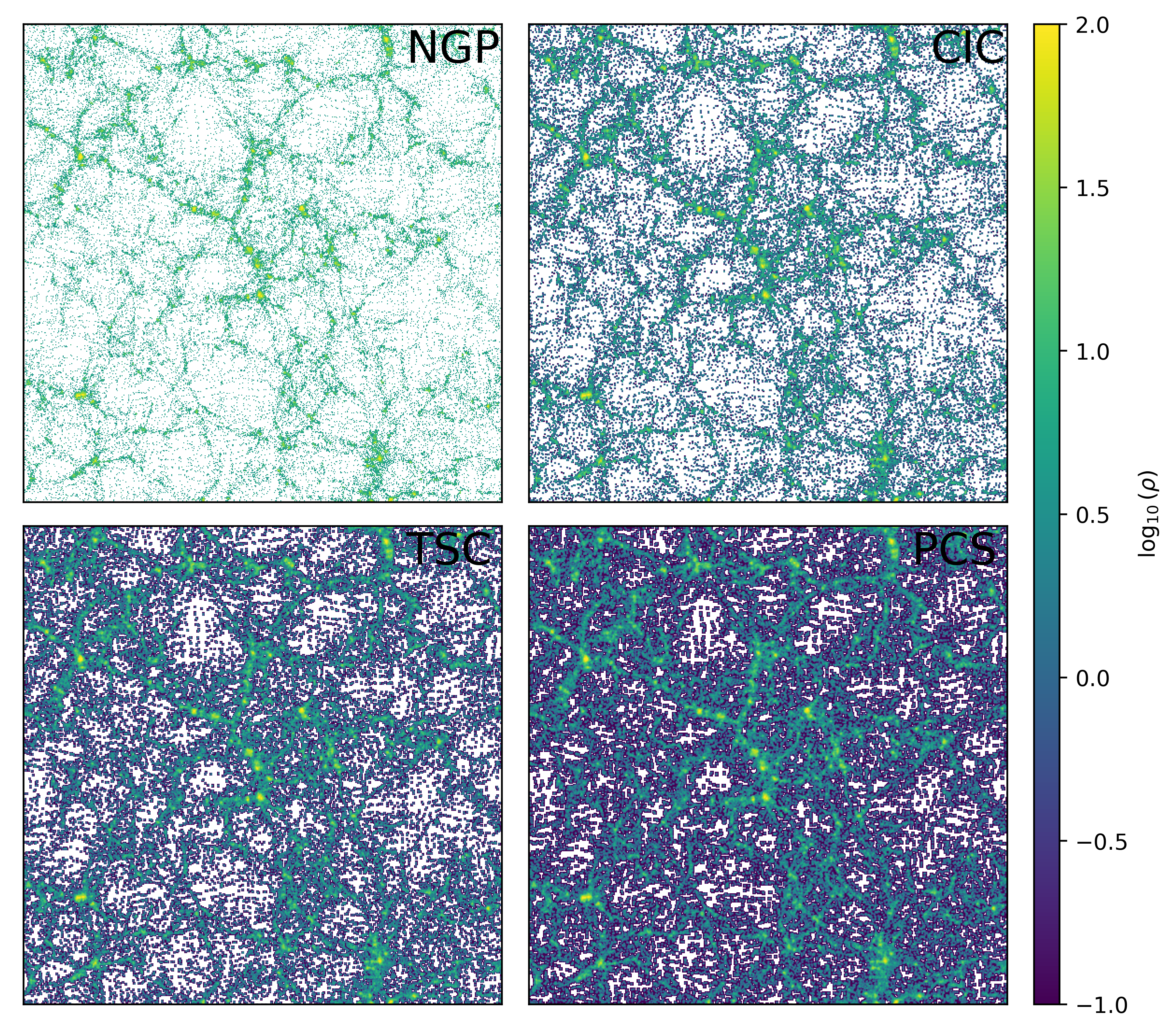

The log-density of the same density field.

Example: 2D Grid Assignment Densities¶

import numpy as np
import fiesta

np.random.seed(0)

x = np.random.uniform(0, 1, 10000)
y = np.random.uniform(0, 1, 10000)

# f here represent particle weights/masses, we will assume they are all equal.
f = np.ones_like(x)

dgrid = fiesta.part2grid2D(
    x, y, f,
    boxsize=1.0,
    ngrid=256,
    method='CIC'
)

Example: 2D Grid Assignment Fields¶

import numpy as np
import fiesta

np.random.seed(0)

x = np.random.uniform(0, 1, 10000)
y = np.random.uniform(0, 1, 10000)

# f here represent particle weights/masses, we will assume they are all equal.
f = np.ones_like(x)

dgrid = fiesta.part2grid2D(
    x, y, f,
    boxsize=1.0,
    ngrid=256,
    method='CIC'
)

# Let's assume we have velocities and we want to compute the velocity field.
v = np.random.uniform(x)

vgrid = fiesta.part2grid2D(
    x, y, v,
    boxsize=1.0,
    ngrid=256,
    method='CIC'
)

# vgrid is a momentum field since it weights the grid by the number of points
# so we must normalise to get the correct field values.

vgrid /= dgrid

Example: 3D Grid Assignment Densities¶

import numpy as np
import fiesta

np.random.seed(0)

x = np.random.uniform(0, 1, 10000)
y = np.random.uniform(0, 1, 10000)
z = np.random.uniform(0, 1, 10000)

# f here represent particle weights/masses, we will assume they are all equal.
f = np.ones_like(x)

dgrid = fiesta.part2grid3D(
    x, y, z, f,
    boxsize=1.0,
    ngrid=256,
    method='TSC'
)

Example: 3D Grid Assignment Fields¶

import numpy as np
import fiesta

np.random.seed(0)

x = np.random.uniform(0, 1, 10000)
y = np.random.uniform(0, 1, 10000)
z = np.random.uniform(0, 1, 10000)

# f here represent particle weights/masses, we will assume they are all equal.
f = np.ones_like(x)

dgrid = fiesta.part2grid3D(
    x, y, z, f,
    boxsize=1.0,
    ngrid=256,
    method='TSC'
)

# Let's assume we have velocities and we want to compute the velocity field.
v = np.random.uniform(x)

vgrid = fiesta.part2grid3D(
    x, y, z, v,
    boxsize=1.0,
    ngrid=256,
    method='TSC'
)

# vgrid is a momentum field since it weights the grid by the number of points
# so we must normalise to get the correct field values.

vgrid /= dgrid

API Reference¶

fiesta.p2g.part2grid2D(x: ndarray, y: ndarray, f: ndarray, boxsize: float | List[float], ngrid: int | List[int], method: str = 'TSC', periodic: bool | List[bool] = True, origin: float | List[float] = 0.0) → ndarray

Returns the density contrast for the nearest grid point grid assignment.

Parameters:

x (array) – X coordinates of the particle.
y (array) – Y coordinates of the particle.
f (array) – Value of each particle to be assigned to the grid.
boxsize (float or list) – Box size.
ngrid (int) – Grid divisions across one axis.
method (str, optional) – Grid assignment scheme, either ‘NGP’, ‘CIC’, ‘TSC’ or ‘PCS’.
periodic (bool or list, optional) – Assign particles with periodic boundaries.
origin (float or list, optional) – Origin.

Returns:

fgrid – Grid assigned values.

Return type:

array

fiesta.p2g.part2grid3D(x: ndarray, y: ndarray, z: ndarray, f: ndarray, boxsize: float | List[float], ngrid: float | List[float], method: str = 'TSC', periodic: bool | List[bool] = True, origin: float | List[float] = 0.0) → ndarray
